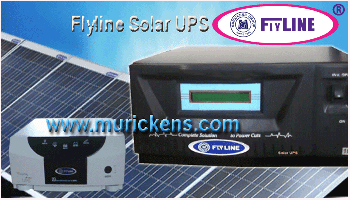

FLYLINE SOLAR UPS
Muricken's group developed an alternate source of electrical
energy for the trouble free working of computer and other
sophisticated equipments. There are different kind of
energies like windmill hydro-electrical and from natural
gas. We developed different kind of solar products for every
day use, solar UPS is working with the help of sunlight. The
system contains Photovoltaic cell, Flyline solar ups
and battery. Solar cells converting sun energy (including
ultra violet radiation) into Direct Current and Solar
Inverter converted it into Alternative current. Commonly we
use one who wanted to save money and avoid the headache of
power problems, which is suitable in house, office,
industries, desert areas where there is no power supply.
FEATURES OF FLYLINE SOLAR UPS:
►Pure sine
wave system can use as ups for computer
► Maintenance Free.
► Attractive Designs.
► No
electricity bill to pay ►
Single Switch Operation.
► Fully automatic.
►DSP
based very low component cost design. ► Single sided PCB, easy to
assemble without any SMD
system
components.
► Auto resetting.
► Protection from
lightening, High/Low Voltage Trip.
► Over Load
Protection.
► Over Charge and
Deep Discharge cut off.
► Independent
Digital display for charging voltage, main voltage, inverter voltage,
load etc.
►
Provision for connecting KSEB current and solar power.
► Audio and Visual
Indicators. ►
Can connect to the existing wiring. ► Bridge type center
aligned switching MOSFET based topology. ► Settable SMPS
intelligent charging system. ►
No husking sound.
TECHNICAL SPECIFICATION OF FLY LINE SOLAR UPS:
|
Sl-No |
Parameter |
Single Phase Unit |
|
1 |
Rating |
650 VA to 6000VA |
|
2 |
Input Voltage Range |
180V-270 AC or Solar power 12, 24, 36 or 48V |
|
3 |
Nominal Output Voltage |
230V AC |
|
4 |
Output Frequency |
50 Hz: ± 1% |
|
5 |
Input Frequency |
45-55 Hz |
|
6 |
Power Factor |
-0.8 lagging to unity |
|
7 |
Efficiency |
95% |
|
8 |
Control |
Digital/Analogue |
|
9 |
Winding |
Cooper winded |
|
10 |
Wave form |
Pure Sine Wave |
|
11 |
Mounting |
Free |
|
12 |
Compact in size , Can work on Generators |
|
13 |
Charging |
AC or Solar Power |
|
14 |
Noise |
Low noise <50db |
|
15 |
Battery |
12, 24 or 48v |
|
16 |
Heat |
Above 50 degree |
Our standard models are: 650VA, 1000VA, 1300VA, 2000VA, 3000VA, 4000VA, 5000VA and
6000 VA.
