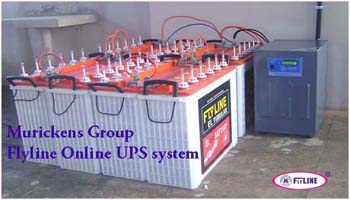

FLYLINE ON LINE UPS
Our vast experience in Power Electronics field has
resulted in development features of rich products. The On-line UPS
provides the highest level of power protection for the electronic
products. It is an uninterrupted pure sine wave and constant out put
power supply with different capacity and advanced features. An Online
UPS provides the highest level power protection, conditioning and UPS
backup available. There is no switching from mains to battery so there
are no switchover time lag issues. This is often important for high
speed data transmissions and switching equipment. The power from these
Online UPS is far superior to that of the other types of UPS as it
completely regenerates the sine wave, instead to simply recondition the
mains supply.
FLYLINE
ON LINE UPS FEATURES:
►
Low power consumption.
►
Audio and Visual indicators.
►
Low and High Battery charging cut off.
►
By using recommended battery we get constant voltage output.
►
Output 240V to 415V.
►
Input voltage 180V to 390V.
►
Fully automatic.
►
Compact in size.
►
Low maintenance - Long durability.
►
The number of Batteries required, depends upon capacity of the UPS.
TECHNICAL
SPECIFICATION
OF ON LINE UPS:
|
TECHNICAL FEATURES OF ONLINE UPS |
|
Sl. No. |
Parameter |
Single Phase Unit |
Three Phase Unit |
|
1 |
Rating |
1 KVA to 15 KVA |
6 KVA to 100 KVA |
|
2 |
Battery Volt /KVA |
1KVA-36V |
2KVA- 72V |
3KVA- 72V |
5KVA- 192V |
7KVA- 192V |
10KVA- 240V |
12KVA- 240V |
15KVA- 240V |
|
3 |
Special Sine Wave Model |
1KVA- 12V |
1.3KVA-24V |
2KVA- 24V |
3KVA- 48V |
Nil |
|
4 |
Input Voltage Range |
190 V -270 V |
375-450V |
|
5 |
Nominal Output Voltage |
240V |
415V |
|
6 |
Output Voltage Accuracy |
± 1% |
± 3% |
|
7 |
Output Frequency |
50 Hz: ± 1% |
50 Hz: ± 1% |
|
8 |
Input Frequency |
45-55 Hz |
45-55 Hz |
|
9 |
Power Factory |
-0.8 lagging to unity |
|
|
10 |
Voltage Correction Rate |
Voltage Correction |
|
|
|
|
|
|
1. Air Cooled |
35V/Sec. |
35V/Sec. |
|
|
2. Oil Cooled |
35V/ Sec |
35V/ Sec |
|
|
|
|
|
11 |
Efficiency |
90% |
90% |
|
12 |
Control |
Digital/Analogue |
Digital/Analogue |
|
13 |
Winding |
Cooper wind |
|
|
14 |
Noise |
Low noise <50db |
|
|
|
|
|
15 |
Heat |
above 50 degree |
|
|
|
|
|
16 |
Wave form |
Pure sine wave |
|
|
17 |
Mounting |
Free on wheel |
|
|
|
|
Compact in size |
|
|
|
|
Can work on Generators |
|
|
18 |
Transient response |
For step load change of 0% to 100% and 100% to 0% |
|
|
|
Output remains within +/- 5% and recovers within 5 m
secs. |
Standard models are
650VA, 1000VA, 1300VA, 2000VA and 5000 VA.
